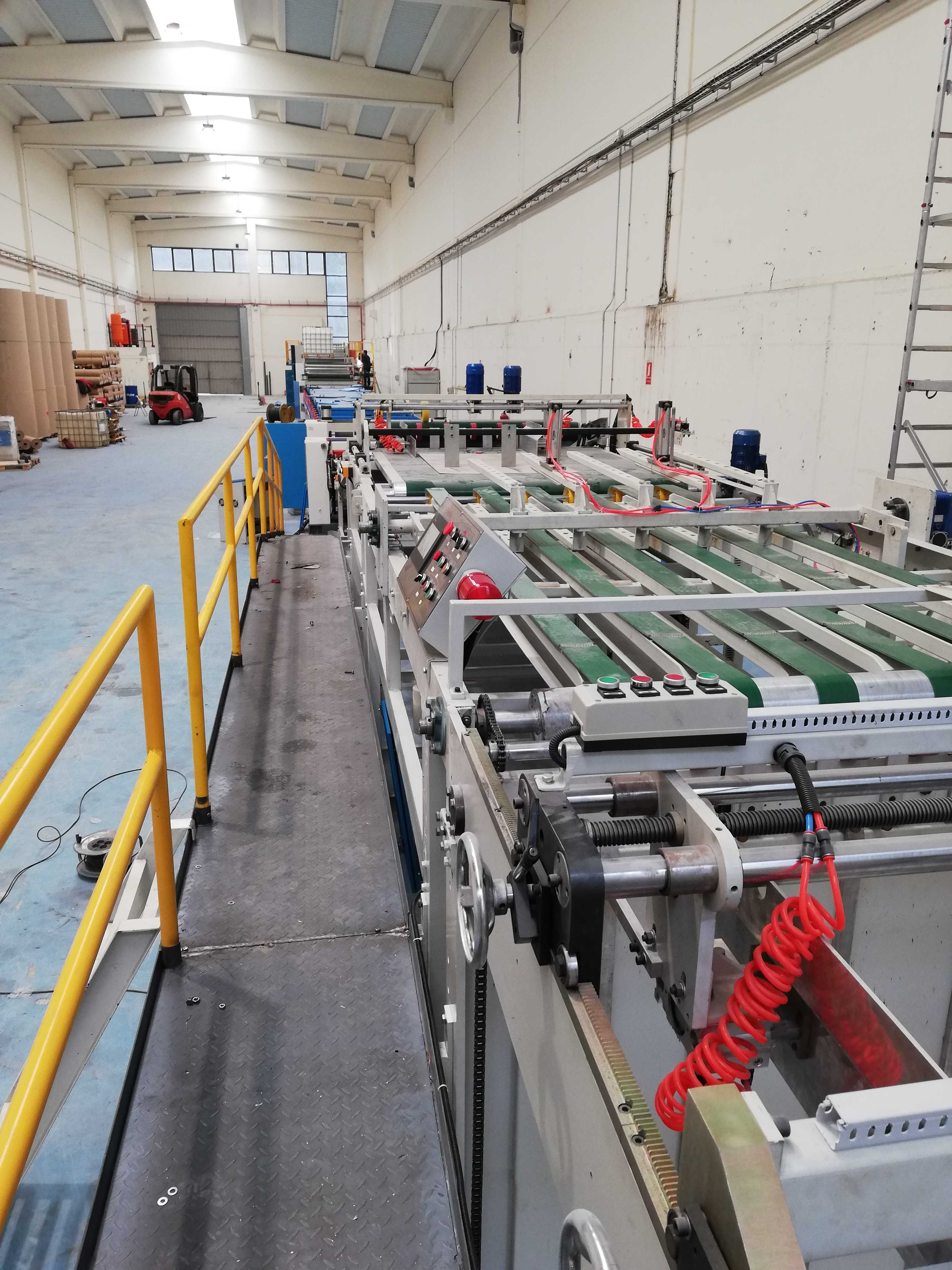

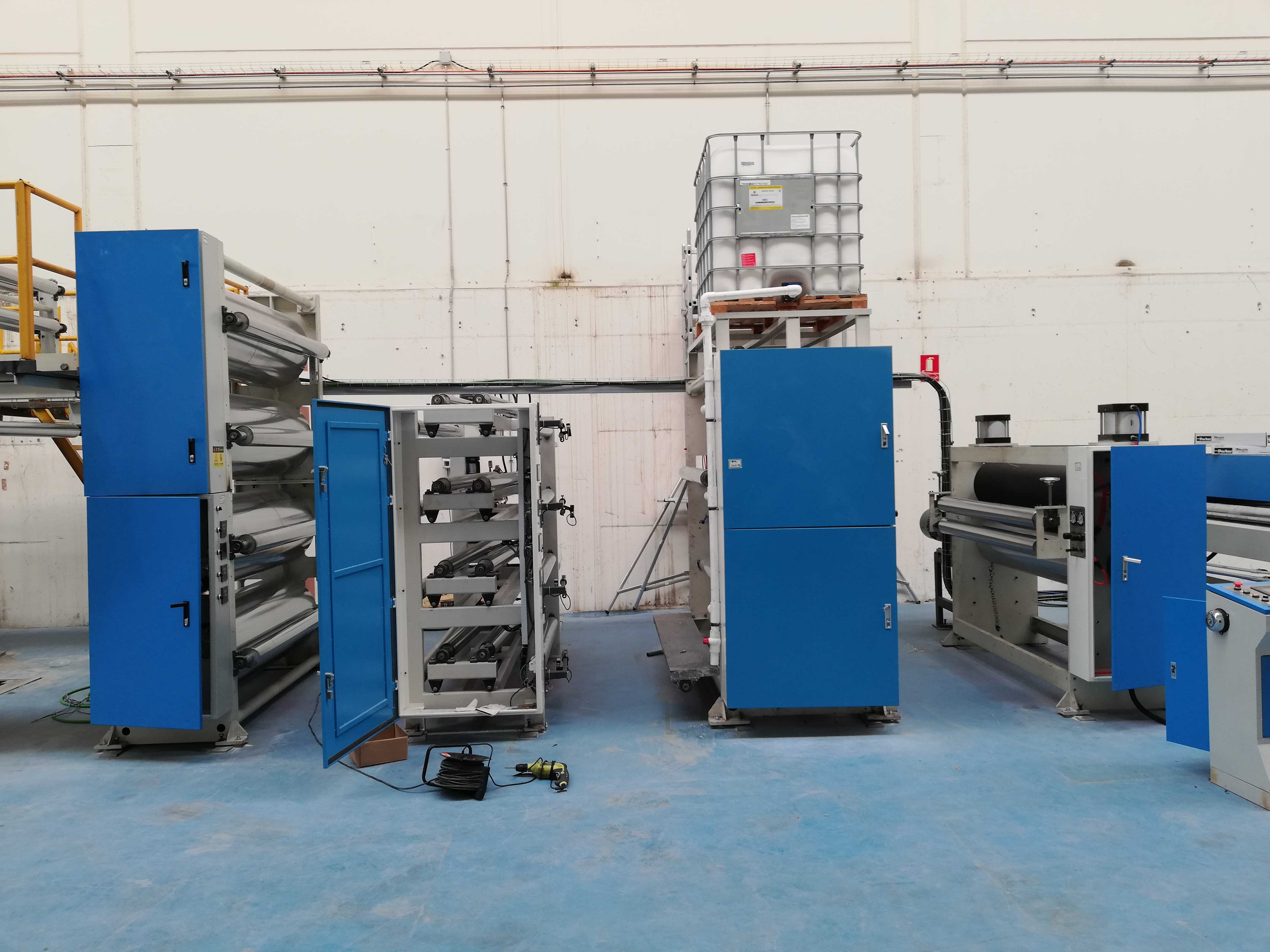

EMHB-1600 paper hardboard production line is to produce hardboard with Max. width 1600mm, and Max. thickness 4mm. 14 meter electrical drying device can make the moisture content less than 15%.
|
Model |
EMHB-1600 |
|
Max. board width size(mm) |
1600 |
|
Min. board width (mm) |
500 |
|
Thickness(mm) |
≦4mm |
|
Applicable paper |
80-600g/m2 fluting paper or kraft paper |
|
Surface Paper |
80-220g/m2 kraft paper |
|
Max. quantity of Layer |
4 |
|
Max. speed |
100m/min(To make sure the moisture content less than 15%, the Max. speed in summer is 80m/min, 60m/min in winter) |
|
Paper stands |
Hydraulic paper stand without spindle. Max. Φ 1500mm. |
|
Drying system |
14 meters long, 75kW power |
|
Control system |
PLC and servo motor, touch screen |
|
Cutting length |
400-9999mm |
|
Cut tolerance |
±1mm |
|
Cutting system |
Rotary cut off machine |
|
Main motor power supply |
110KW 380V, 50HZ, 3 phase(50-90kW usually, depends on the moisture percent of the raw products) |
|
Dimension(m) |
67.1×3.5×3.2m ( including dryer 14m) |
