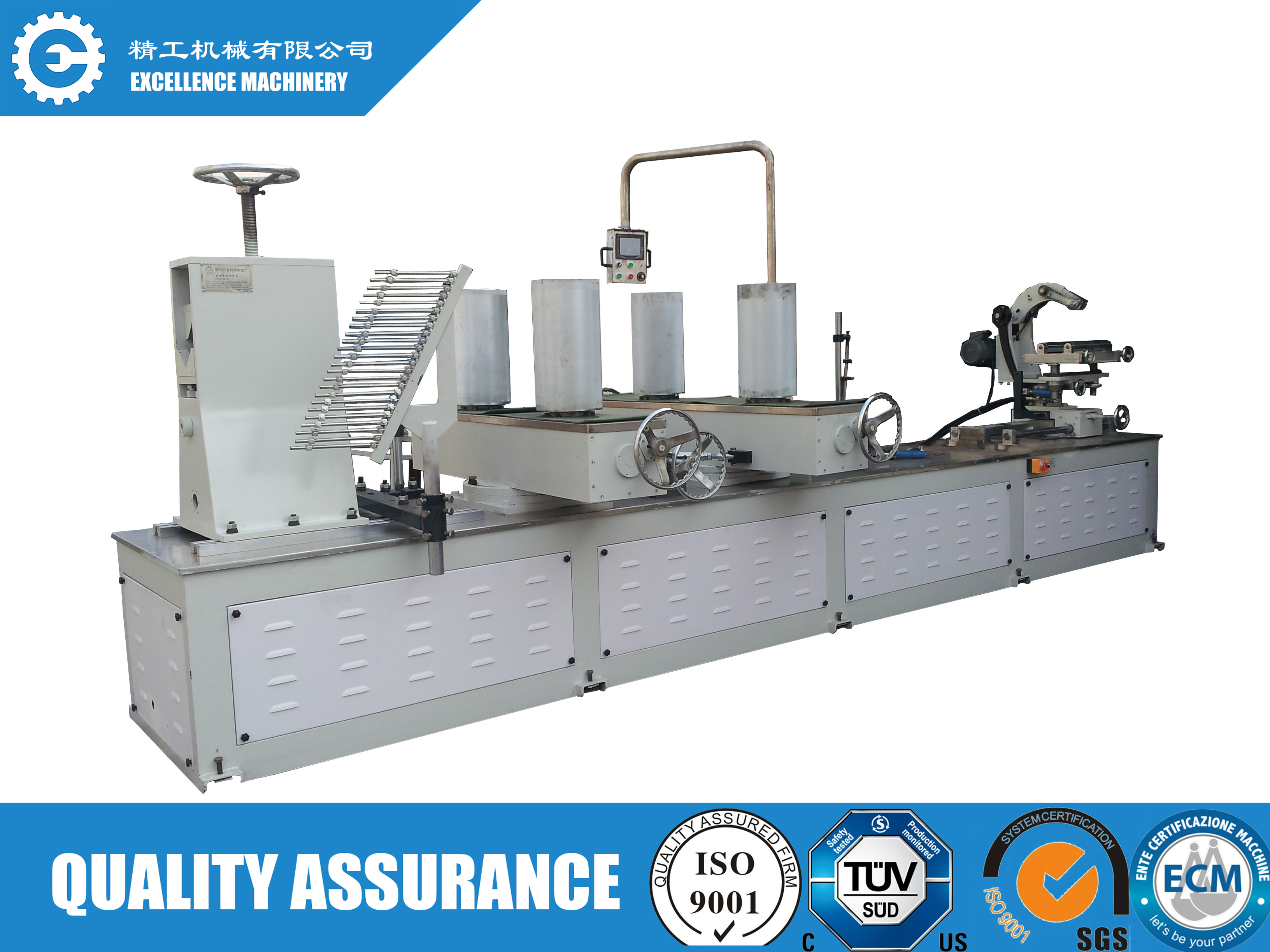

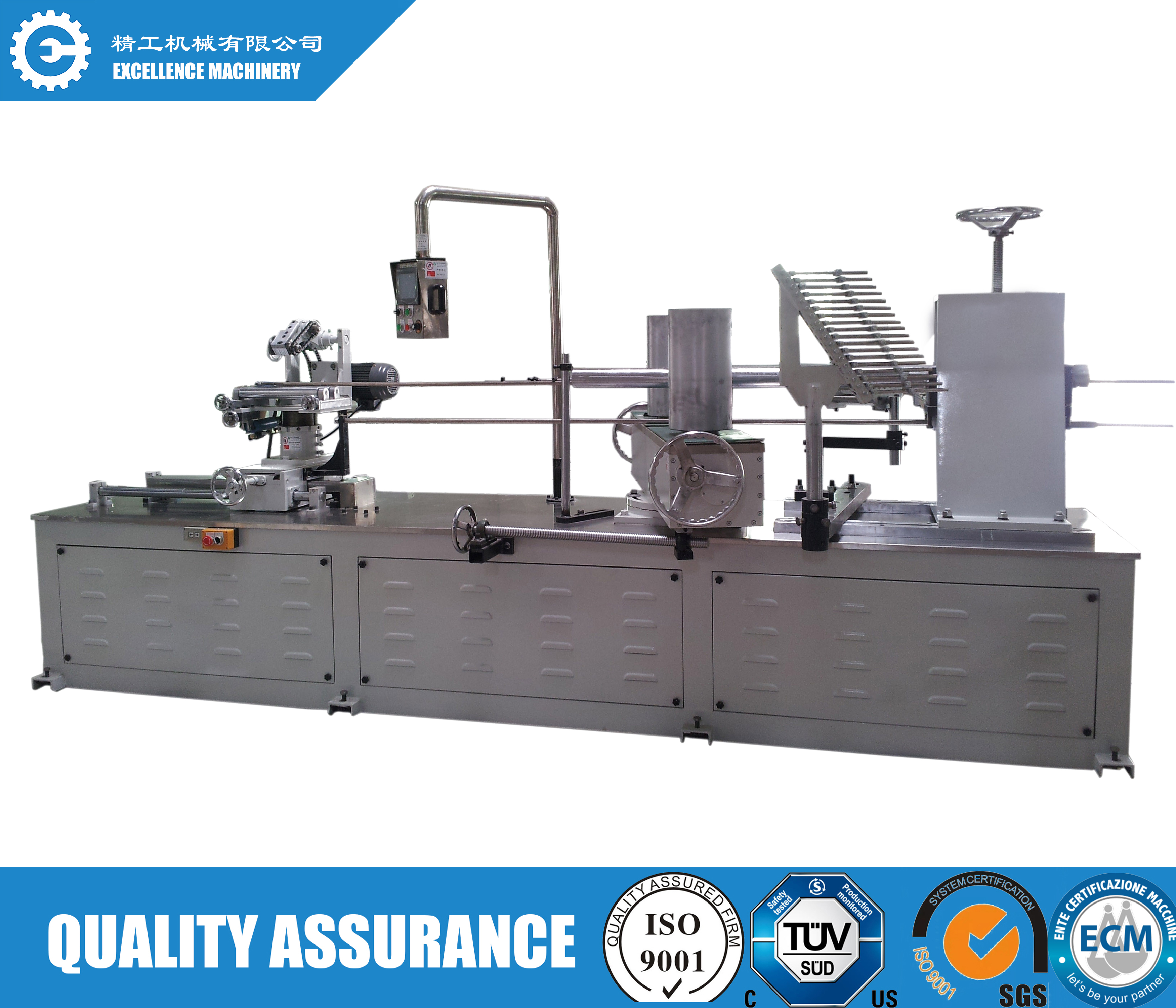

This machine is designed for spiral paper tube production. The advantage is high efficiency, high quality and steady performance. It can produce the paper tube diameter from 30mm to 250mm. The control system adoptsMitsubishiPLC, touch screen, servo motor and related control device.
|
Model |
EMSXO-250 |
|
Diameter |
30mm—250mm(Die for 76mm will comes with the machine) |
|
Wall thickness |
2mm-8mm |
|
Quantity of layers |
Max. 15 layers |
|
Min. cutting length |
500mm |
|
Max. cutting length |
5000mm |
|
Motor power |
13KW |
|
Total Weight |
App. 3.5T |
|
Main part size |
4200mm(L)×1500mm(W)×1500mm(H) |
|
Cutting tolerance |
±2mm |
|
Paper stand |
Composite type with crane |
|
Control system |
Mitsubishi PLC, touch screen, convertor and servo motor. |
|
Production speed |
Max. 20 meters/min. |
