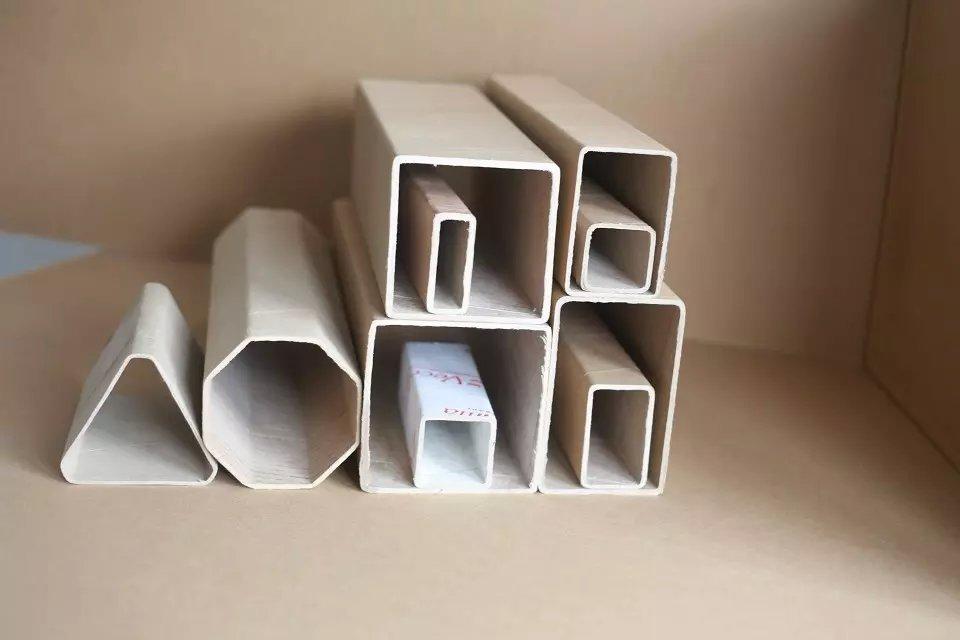

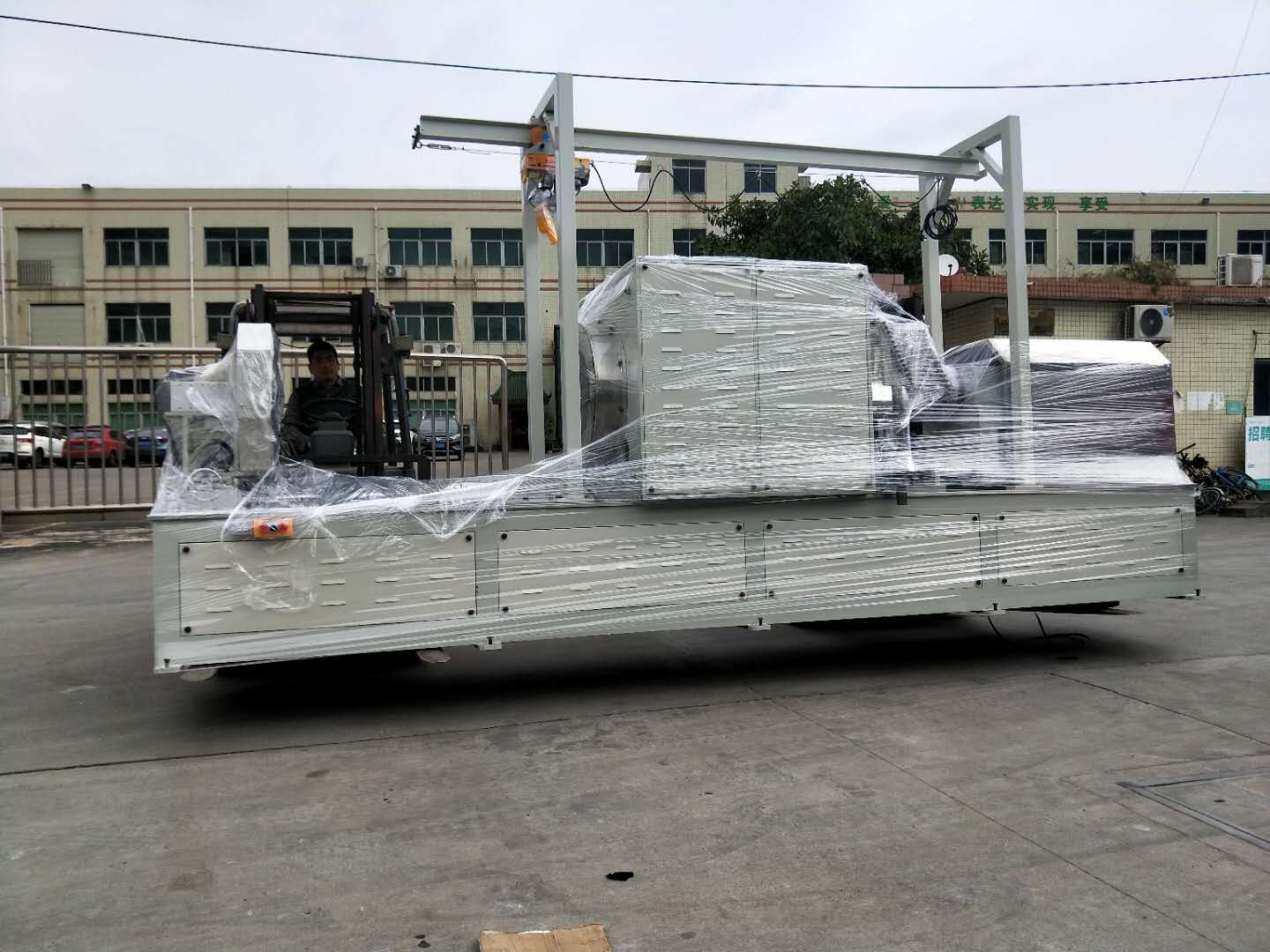

This machine is used for making octagonal paper tube. It consists of integral paper reel stand, bottom ply
wax lubricating stand, glue stand, spiral winding unit, inline cutting unit with dust collecting device and tube
discharging unit. 1pc mandrel less than 100mm side length is included in the machine.
This machine owns below features:
Japan Mitsubishi PLC and Inverter
Japan Mitsubishi 6 inches touching panel
Japan Mitsubishi Servo motor
Japan THK brand high-speed screw
Stainless steel glue tank and stainless steel glue scraper
Automatic angle adjustment of winding unit (main machine). Very easy operation for different sizes.
|
Model |
EMOPT-250 |
|
Tube side length |
50mm—250mm |
|
Tube wall thickness |
2-8mm |
|
Paper reel stand |
Composite paper reel stand with electrical crane |
|
Production speed |
2-8m/min(Depends on the tube size, material quality) |
|
In-line cutting length |
Adjustable, no more than 3000mm |
|
In-line cutting tolerance |
±1.5mm |
|
Cutting method |
Automatic cutting with single round blade |
|
Gluing method |
Double surface gluing |
|
Power |
15kW, 380V, 50HZ, 3 phases |
|
Dimension |
5200mm*1500mm*1800mm |
|
Weight |
6500kg |
