This paper corner board machine adopts PLC control system, use servo motor for cutting device, Max. design speed can reach 60m/min. Usually working speed 50m/min. The forming section has 12 units wheels with drive, and the left 7 units are driven, this makes the protector very strong and beautiful. This machine has on-line puncher for the frame forming, the size can be pre-set on PLC program.
Specification
Model |
EMSXVF100H |
V protector wing size |
25mm—100mm |
Max. thickness |
8mm |
Quantity of layers |
Max. 13 layers |
Min. cutting length |
50mm |
Length of the final product |
100--4000mm |
Production speed |
0-50m/min |
Motor power |
11KW |

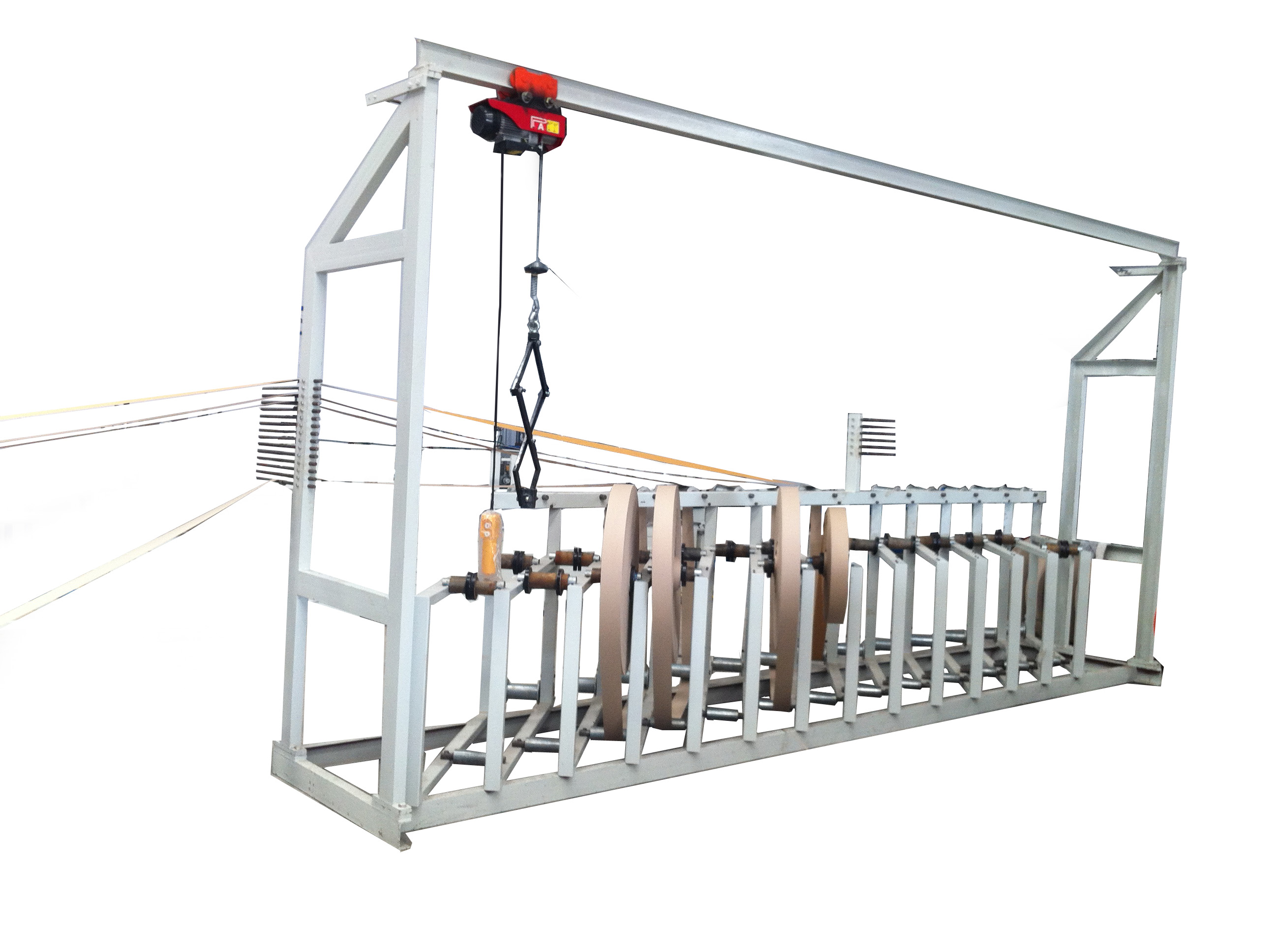

Paper stand |
Composite type with hoist/Liner type with Pneumatic cylinder |
Gluing system |
Roller coating for surface paper, rubber tubes for inner paper glue remove. Glue cycle by pneumatic pump. |
Total Weight |
App. 6.0T |
Overall size |
30500mm(L)×1100mm(W)×1700mm(H) |
Tolerance |
±1mm |
Forming device |
12 units wheels with drive, 7 units driven |
Collecting table |
Automatic collecting, manual packing, Max. 2 meters |
Control system |
Mitsubishi PLC, servo motor and touch screen |
