Descriptiom
-
The machine is applicable for slitting all kinds of paper rolls.
-
Hydraulic no-axle paper feeding is convenient to operate.
-
Pneumatic break plate control structure makes stable tension.
-

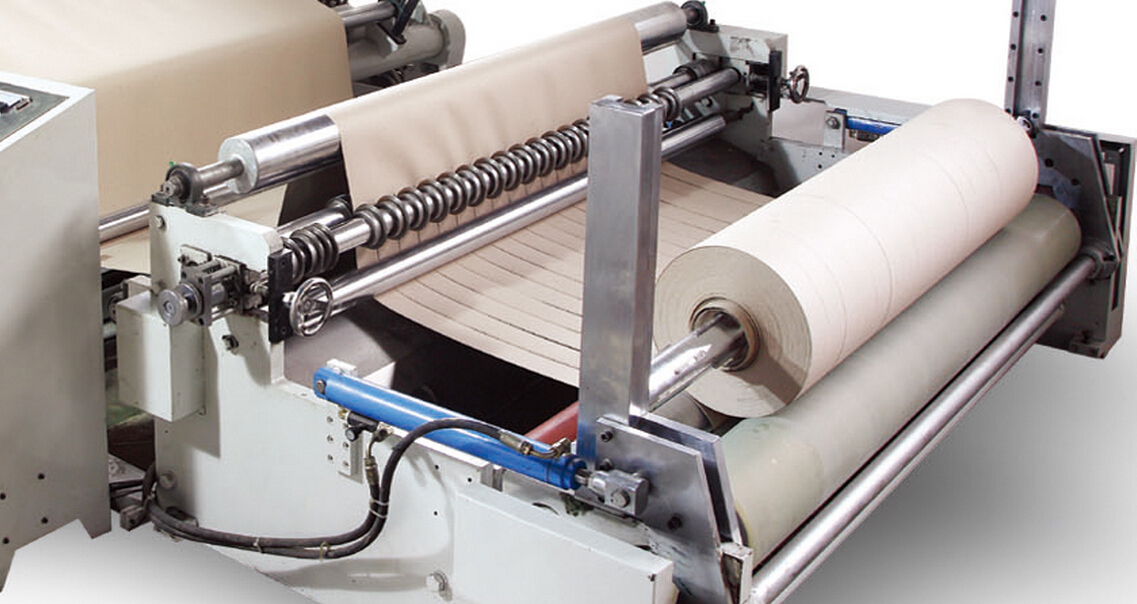

The slitting method is upper and lower round knife slitting.
-
Single-axle rewinds the paper rolls tidily.
-
Cylinder swings to unload the paper rolls.
Specification
|
Model |
EMSR-1600 |
|
Max. unwinding diameter |
1200mm |
|
Max. winding diameter |
1200mm |
|
Max. unwinding width |
1600mm |
|
Inside diameter of paper core |
76mm |
|
Min. cutting width |
50mm |
|
Max. cutting speed |
150m/min |
|
Unloading method |
Automatic push out |
|
Total power |
6kW |
|
Total weight |
2800kg |
|
Overall size |
2800mm(L)×3200mm(W)×1470mm(H) |
