Description

Equipment for high and medium speed corrugated cardboard production line, full computer controlled, quick order changing and high precision cutting different length of corrugated cardboards.

The combination of leading control model with high quality mechanical design, makes the equipment as the most ideal choice for the customers.

Features

• High quality industrial computer or HMI compose the computer control system.

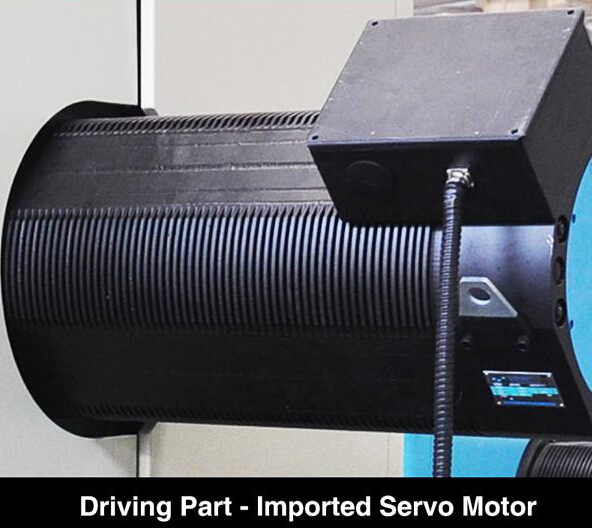

• AC servo motor, imported special drive controlling system.

• Can be lined with the production management system, auto or maunal order changing without downtime.

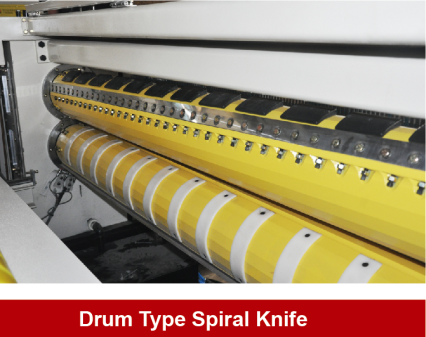

• Double spiral knife roll structure, small cutting force, higher effciency and smooth rotation.

• Special material made spiral knife, rational designed roll structure, long serving life.

• Rational designed machinical structure, the feeding section connected with the main body via the rails, convient for the knife adjusting.

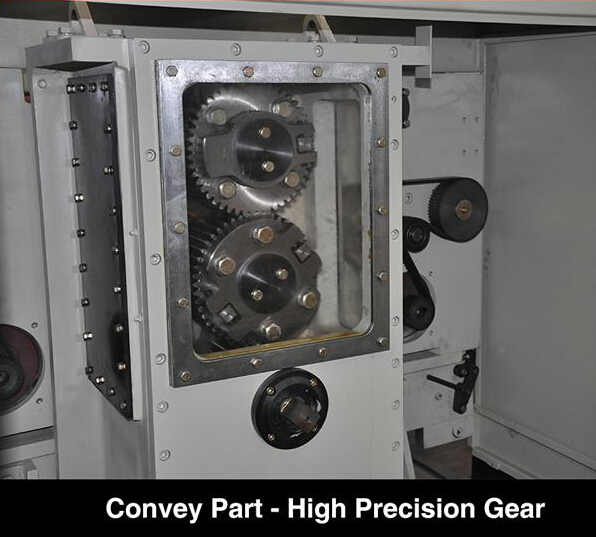

• The precision gear is made after firging, fine finishing, heating treating, with tiny backlash clearance, smooth transmission and low noise.

• High cutting precision, at average speed: ≤±1mm; at average variable speed: ≤±1.5mm.

• Production line speed: ≤220m/min.

Parameters
