1. Description

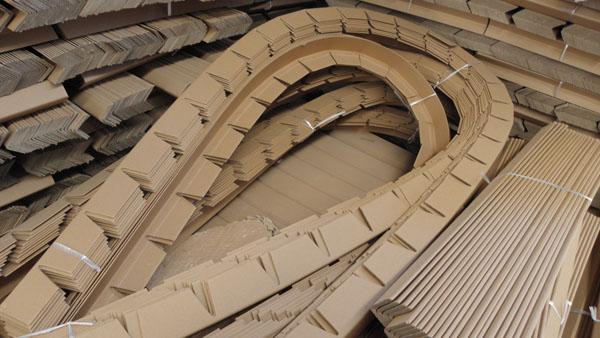

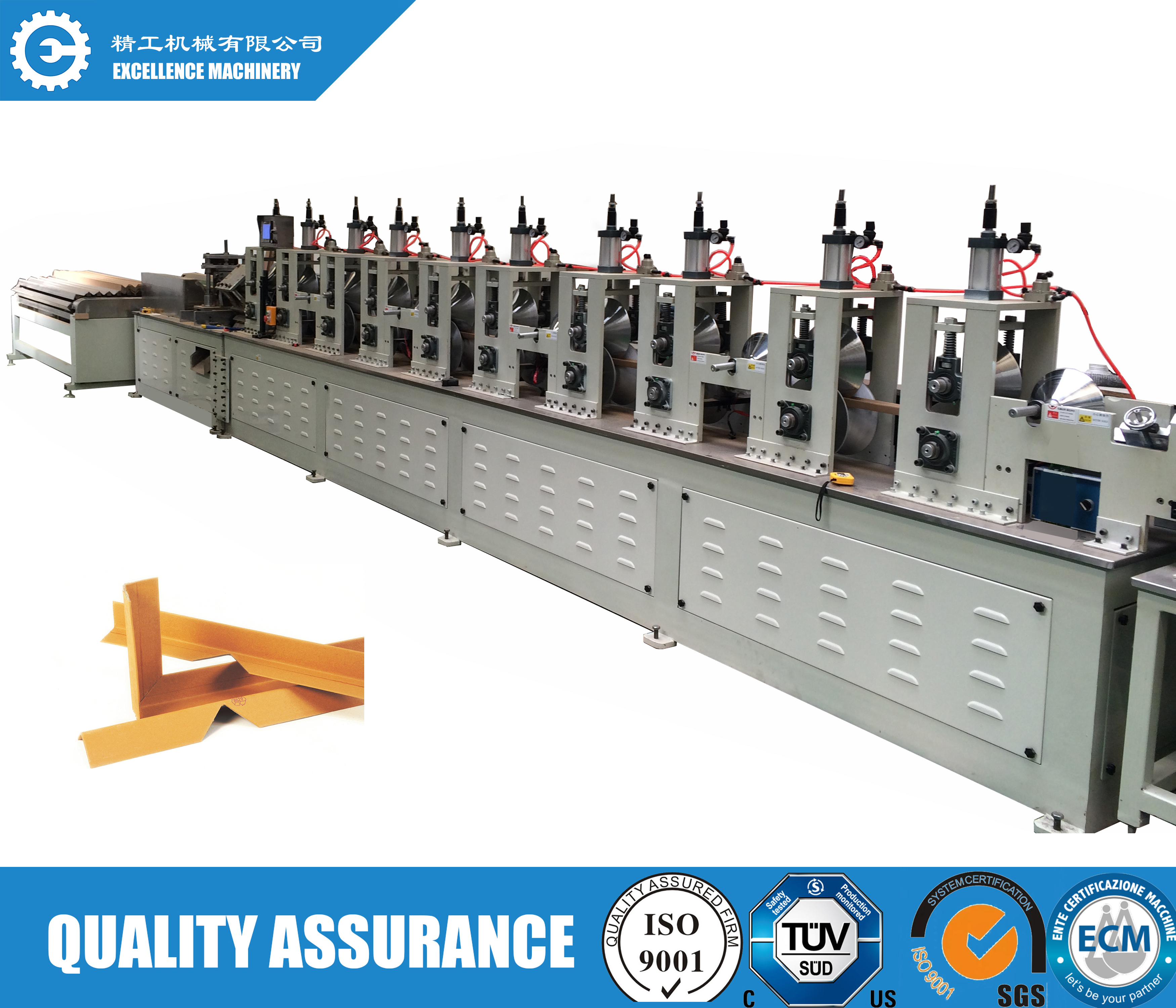

This paper corner board machine adopts PLC control system, use servo motor for cutting device, Max. speed can reach 45m/min. The forming section has 8 units wheels with drive, and the left 6 units are driven, this makes the protector very strong and beautiful. This machine has on-line puncher for the frame forming, the size can be pre-set on PLC program.
2. Specification
|
Model |
EMSXV120 |
|

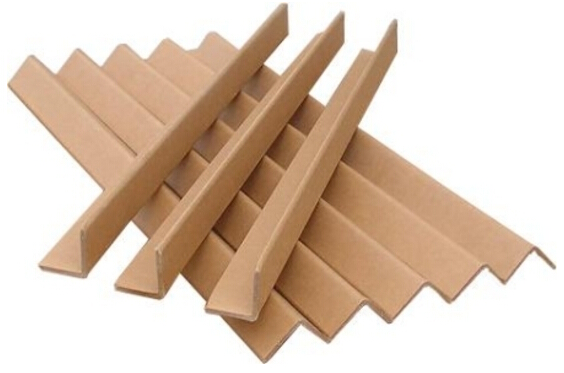

V protector wing size |
25mm—100mm |
|
Max. thickness |
8mm |
|
Quantity of layers |
Max. 13 layers |
|
Min. cutting length |
100mm |
|
Length of the final product |
100--4000mm |
|
Production speed |
0-50m/min |
|
Motor power |
10KW |
|
Total Weight |
App. 5.5T |
|
Overall size |
25000mm(L)×1100mm(W)×1700mm(H) |
|
Tolerance |
±1mm |
|
Forming device |
8 units wheels with drive, 6 units driven |
|
Collecting table |
Automatic collecting, manual packing |
|
Control system |
Mitsubishi PLC, servo motor and touch screen |
|
Punching device |
One set mould for 80*80*5mm size. |
